Overview

Introduction

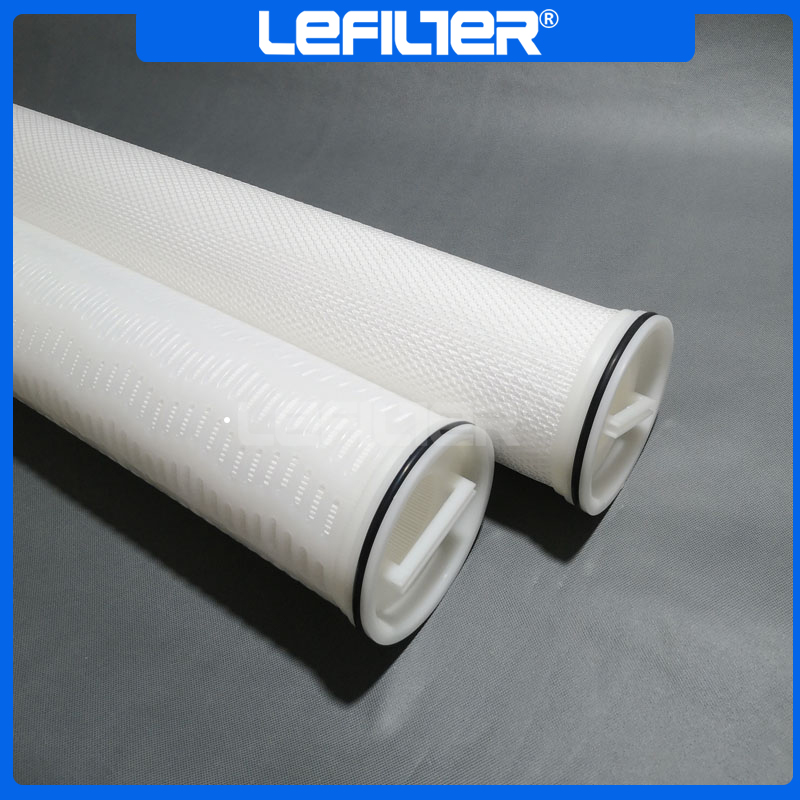

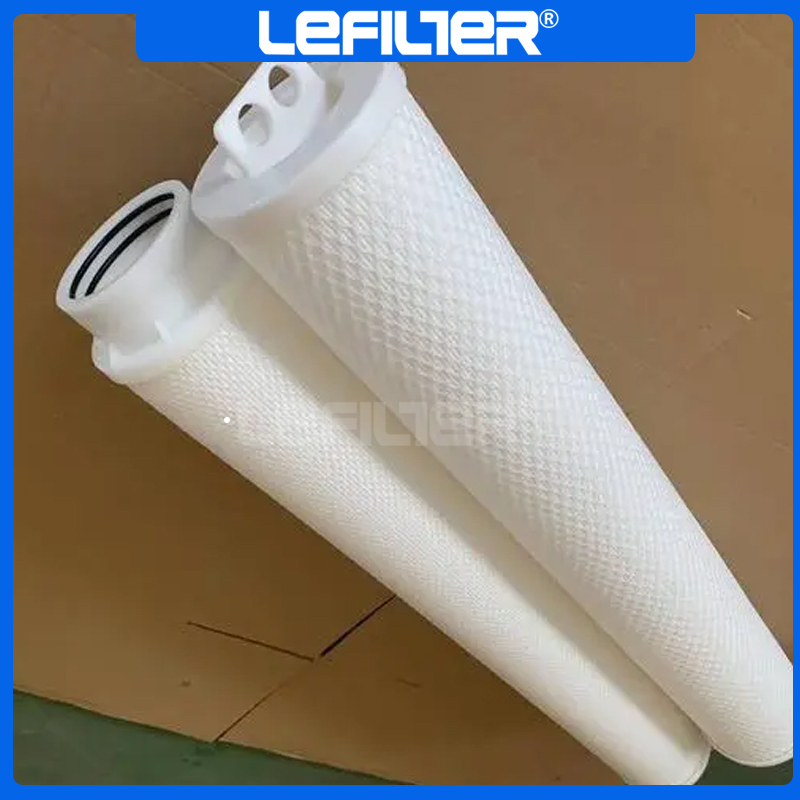

High flow filter cartridge is a kind of water filter cartridge with high quality glass fiber or polypropylene filter media. It has high particle removal efficiency and broad chemical compatibility than a standard micron filter cartridge.

High flow filter cartridge features inside-to-outside flow to keep unwanted particulate trapped within filter. External netting adds extra support and built-in handle makes water filter cartridge change out fast, easy and safe. Thermal bonding of high flow sediment filters guarantees the integrity and eliminates glues or adhesives additives.

Features

1. High contaminant holding capacity for long life.

2. All materials of construction are FDA listed.

3. Fewer cartridges for fewer change-outs, thus less labor and disposal cost.

4. Thermally bonded ensure structure integrity and no additives

5. Heavy wall core offers superior strength.

6. Integrated handle makes change out fast, easy and safe.

7. Inside-to-outside flow traps particulate within filter.

8. External netting for additional support.

9. Compatible with most brand standard high flow filter housings.

Application

Reverse Osmosis pre-filtration

Power plant cold condensate filtration

Chemical industry

Petrochemicals

Food & Beverage

Oil & Gas

Structure & Drawing

high flow filter cartridge

Data Sheet

P-all High Flow Filter Cartridge
Filter Media	Polypropylene(PP), Glass Fiber
Length	20"(508mm), 40"(1016mm), 60"(1524mm)
Outside Diameter	6" (152mm)
Filtration Direction	From inside to outside
Filtration Rating	1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support Core	Polypropylene (PP)
End Cap Material	Glass fiber reinforced Polypropylene (PP)
Outside	Rigid Hard Cage, Belt, Stainless Steel(special)
Seal Material	EPDM, Buna-N,Viton
Max. Operating Temp.	Pleated glass fiber:121°C, Pleated PP:82°C, Melt Blown PP: 65°C
Max. Differential Pressure	Pleated glass fiber:3.4 Bar at 121°C, Pleated PP:3.4 Bar at 82°C, Melt Blown:1.03 Bar at 65°C
Recommended Change out Differential Pressure	2.5 Bar at 20°C

Product Range

P-all High Flow Filter Cartridge

Filter Media Polypropylene(PP), Glass Fiber

Length 20"(508mm), 40"(1016mm), 60"(1524mm)

Outside Diameter 6" (152mm)

Filtration Direction From inside to outside

Filtration Rating 1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm

Support Core Polypropylene (PP)

End Cap Material Glass fiber reinforced Polypropylene (PP)

Outside Rigid Hard Cage, Belt, Stainless Steel(special)

Seal Material EPDM, Buna-N,Viton

Max. Operating Temp. Pleated glass fiber:121°C, Pleated PP:82°C, Melt Blown PP: 65°C

Max. Differential Pressure Pleated glass fiber:3.4 Bar at 121°C, Pleated PP:3.4 Bar at 82°C, Melt Blown:1.03 Bar at 65°C

Recommended Change out Differential Pressure 2.5 Bar at 20°C

P-arker High Flow Filter Cartridge

Filter Media Polypropylene(PP)

Length 20"(508mm), 40"(1016mm), 60"(1524mm)

Outside Diameter 6" (152mm)

Inside Diameter 3.5"(89mm)

Filtration Rating 1μm,2μm,3μm,5μm,10μm,20μm,40μm,70μm, 100μm

Support / Drainage Polypropylene (PP)

End Cap Material Glass fiber reinforced Polypropylene (PP)
Outside: Netting, Cage

Seal Material EPDM, Buna-N,Viton

Max. Operating Temp. 82°C

Max. Differential Pressure 3.4 Bar at 82°C

Suggested Max. Flow Rate 20"(508mm) - 30m³/h
40"(1016mm) - 50m³/h
60"(1524mm) - 70m³/h

3-M High Flow Filter Cartridge

Filter Media Polypropylene(PP)

Support / Drainage Polypropylene (PP)

End Cap Material Glass fiber reinforced Polypropylene (PP)

Seal Material EPDM, Buna-N, Silicone

Length 20"(508mm), 40"(1016mm), 60"(1524mm)

Outside Diameter 6.5" (165mm)

Inside Diameter 3"(76.2mm)

Filtration Rating 1μm,3μm,5μm,10μm,20μm,50μm,70μm,100μm

Max. Operating Temp. 80°C

Recommend DP for change-out 2.1-2.4 bar

Filtration Area 18㎡ at 60", 12㎡ at 40"
